Name: Transformer Core Stacking Table with 0.1~0.2mm Stacking Accuracy, 1000kg Load Capacity and Handheld Controller for Hydraulic Tilting Worktable
Brand: Suzhou Tronsing Technology Co., Ltd
SKU: FZT-1T
Price: 26000.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Table Name: Transformer Core Stacking Table

Function: Stacking And Tilting Iron Core

Platform Size: 1300x1000mm

Platform Height: 1000mm

Motor Power: 1.5kw

Tilting Speed: 90 Degree Per Minute

Color: As Requested

Warranty: 12 Months

Highlight:

0.1~0.2mm Stacking Accuracy Transformer Core Stacking Table

1000kg Load Capacity Hydraulic Tilting Worktable

Handheld Controller Core Assembly Platform

Basic Infomation

Place of Origin: China

Brand Name: SZT

Model Number: FZT-1T

Payment & Shipping Terms

Packaging Details: seaworthy packing

Delivery Time: 35 days

Payment Terms: T/T, L/C

Supply Ability: 100 sets per year

Gallery

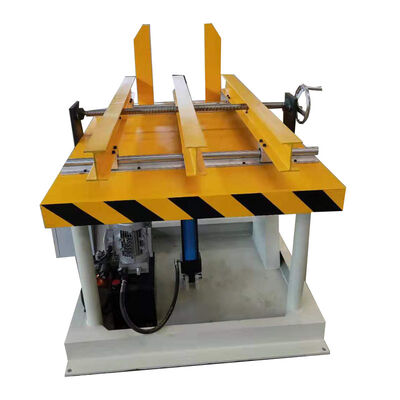

Transformer Core Stacking Table with 0.1~0.2mm Stacking Accuracy, 1000kg Load Capacity and Handheld Controller for Hydraulic Tilting Worktable

Product Description

Transformer Core Stacking Table With Handheld Controller For Stacked Core Tilting

1. Product Overview

FZT-1T Transformer Core Stacking Table is a professional hydraulic tilting worktable specially designed for transformer core assembly and stacking. Equipped with a reliable hydraulic station and handheld controller, this core stacking machine supports precise linear positioning and platform tilting, effectively solving the difficulty of taking out stacked transformer cores from conventional fixed worktables. Widely applicable for standardized stacking and processing of various transformer iron cores and similar electromagnetic components, the equipment features stable operation, high stacking accuracy, and flexible parameter adjustment. It is an essential auxiliary device for transformer manufacturing workshops to improve production efficiency and product consistency.

High Stacking Precision: Achieves stacking accuracy of 0.1~0.2mm, effectively guaranteeing the assembly precision of transformer cores and reducing product defective rate.
Flexible Adjustable Structure: The distance between support columns is freely adjustable, compatible with transformer cores of different sizes and thicknesses (max thickness 400mm), meeting diverse production needs.
Humanized Operation: Matched with a handheld controller for portable, convenient and flexible on-site operation; equipped with a safe operator interface to ensure construction safety.
Durable & Customizable: Solid mechanical structure supports 1000kg heavy-load stacking; machine color can be customized according to customer workshop standards.
Reliable After-sales Service: Comes with 12-month full warranty, supporting long-term stable industrial continuous operation.

2. Full Technical Parameters

All standard specifications of the FZT-1T transformer core stacking table are listed below. All parameters can be customized and modified according to customer actual production requirements.

Item	Technical Specification
Product Model	FZT-1T
Platform Size	1300 × 1000mm
Maximum Stacked Core Weight	1000kg
Stacking Accuracy	0.1 ~ 0.2mm
Platform Height from Floor	1000mm
Maximum Stacked Core Thickness	400mm
Tilting Speed	90°/Min
Column Spacing	Fully Adjustable
Driving Mode	Hydraulic Drive
Motor Power	1.5KW
Standard Configuration	1 Set Hydraulic Station + Hand Held Controller
Customization	Machine color & parameters customizable
Warranty Period	12 Months

3. Product Application

This hydraulic tilting core stacking table is widely used in transformer manufacturing factories, electromagnetic equipment workshops, and electrical component production lines. It is mainly used for precise stacking, assembly and turnover of transformer iron cores, greatly improving stacking efficiency, reducing manual labor intensity, and ensuring the uniformity and precision of finished transformer cores.

FZT-1T transformer core stacking table with handheld tilting platform, 1000kg load capacity, 0.1-0.2mm high precision, hydraulic drive adjustable core stacking machine for transformer manufacturing.
