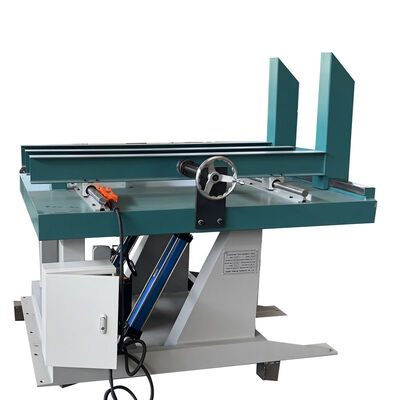

3000kg Hydraulic Transformer Core Stacking Table with 90° Tilting for Transformer Core Tilting Table Assembly

FZT-3T Hydraulic Transformer Core Stacking Table 90° Tilting Assembly Workbench


Description:

FZT-3T heavy-duty hydraulic core stacking tilting table for transformer lamination assembly. 3000kg load, infinitely variable tilting speed, stable 90° turnover. Customizable for power transformer production lines, 12-month warranty.


Overview

The FZT-3T hydraulic tilting stacking bench is purpose-built for transformer lamination stacking and core turnover tasks. Manual handling of heavy stacked silicon steel cores often brings safety risks, position offset and surface scratches. With integrated hydraulic power, this platform rotates finished core stacks to vertical 90°, simplifying unloading and transfer. It cuts physical workload for operators, protects core laminations from damage and streamlines cycle time on transformer assembly lines.


Key Advantages

✅ Smooth Hydraulic 90° Tilting Hydraulic power pack delivers consistent torque. Operators adjust tilting speed steplessly to match core weight and stack thickness. The whole rotation runs steadily without shake, slip or impact.
✅ 3 Ton Heavy Load Design Rated 3000kg capacity, max stack thickness up to 900mm. Adjustable column spacing supports a wide range of medium & small transformer core sizes, good compatibility for mixed production orders.
✅ Precision Linear Guide & Simple Control Linear guide structure guarantees accurate positioning and low-resistance movement. The control panel adopts straightforward button layout; new workers can master operation quickly, lowering human error and maintenance frequency.
✅ Robust Welded Steel Frame & Custom Build Thick steel welded main frame offers high rigidity and long service life. Table paint color can follow your workshop standard. We also accept non-standard modification on table dimensions and functional upgrades.


Technical Specification





Main Components

• Heavy welded main frame: anti-deformation, stable load bearing

• Hydraulic power unit: low noise, reliable tilting power

• Precision linear guides: smooth sliding & repeatable positioning

• Simplified control panel: easy status monitoring and operation


Application

This tilting stacking station fits production lines for power transformers, distribution transformers and related electrical equipment. It serves core lamination stacking, assembly, finished core turnover and material transfer. It is a practical auxiliary machine to raise yield and throughput for transformer fabricators.


FAQ
Q: Will it shake under full 3-ton load?
A: No. Reinforced frame and matched hydraulic system keep stable rotation at full load, protecting silicon steel laminations.

Q: Can I change tilting speed?
A: Yes, infinite speed regulation allows flexible adjustment for different core dimensions.

Q: Can we customize the machine?
A: Customization covers platform size, painting color, mechanical structure and extra functions.
