Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven

Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven

Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven
Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven

Large Image :  Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Stacking And Tilting Core
Table Size: 2000x1600mm Table Height: 1000mm
Max. Capacity: 5000kg Driving Mode: Hydraulic
Motor: 3kw Warranty: 1 Year
High Light:

Iron Core Stacking Table Hydraulic

,

Hydraulic Driven Stacking Table

,

Iron Core Transformer Stacking Table

Iron Core Assembly Platform Hydraulic Driven Transformer Core Stacking Table





Description of transformer core stacking table FZT-5T



Transformer core stacking table FZT-5T is one specail equipment for stacking transformer iron core according to needs. After the iron core is stacked, the transformer core stacking table can tilt the stacked iron core up to 90 degree for taking the stacked core away from the stacking table easily. The transformer core stacking table is suitable for stacking and tilting different sizes of transformer iron cores. The transformer core stacking table adopts a hydraulic station for driving the table to tilt. The speed of the tilting can be adjusted.





Quick details of transformer core stacking table FZT-5T

  • The table size:2000x1600mm
  • Table height:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional



Main Components of transformer core stacking table FZT-5T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor



Main parameters of transformer core stacking table FZT-5T



Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.



No. Item FZT-5T
1 Table Size(LxW): 2000×1600mm
2 Table Height: 1000mm
3 Max. Capacity: 5000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 3KW
9 Warranty: 12 months

Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 0

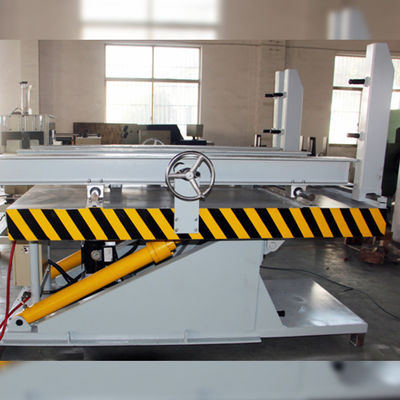

Fig 1: Transformer core stacking table FZT-5T's full view



Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 1

Fig 2: Transformer core stacking table FZT-5T's tilting stacked core



Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 2Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 3

Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 4Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 5Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 6Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 7Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 8Iron Core Assembly Platform Transformer Stacking Table Hydraulic Driven 9
