Industrial Transformer Core Stacking Table Tilting 90 Degree

Industrial Transformer Core Stacking Table Tilting 90 Degree

Industrial Transformer Core Stacking Table Tilting 90 Degree
Industrial Transformer Core Stacking Table Tilting 90 Degree

Large Image :  Industrial Transformer Core Stacking Table Tilting 90 Degree Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking And Tilting Core
Table Size: 2000x1600mm Table Height: 1000mm
Max. Capacity: 5000kg Driving Mode: Hydraulic
Motor: 3kw Warranty: 1 Year
High Light:

Industrial Transformer Core Stacking Table

,

Stacking Table Tilting 90 Degree

,

Transformer Core Stacking Table 3kw

Industrial Equipment Transformer Core Stacking Table Tilting 90 Degree


Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a professional industrial equipment, it is mainly used to stack transformer iron core and tilt the stacked core for taking it away easily. The transformer core stacking table is suitable for stacking and tilting large and medium transformer iron core. The transformer core stacking table adopts a hydraulic station for driving the table to tilt for taking away the stacked iron core easily. The speed of the tilting can be adjusted. It is very easy to operate the transformer core stacking table.


Quick details of transformer core stacking table FZT-5T

  • The table size:2000x1600mm
  • Table height:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional


Main Components of transformer core stacking table FZT-5T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor


Main Parameters of transformer core stacking table FZT-5T



Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.



No.ItemFZT-5T
1Table Size(LxW):2000×1600mm
2Table Height:1000mm
3Max. Capacity:5000Kg
4Max. Stacking Thickness:900mm
5Tilting Mode:Hydraulic
6Tilting Speed:90°/Min(Stepless speed regulating)
7Distance Between Columns:Adjustable
8Main Power:3KW
9Warranty:12 months


Industrial Transformer Core Stacking Table Tilting 90 Degree 0

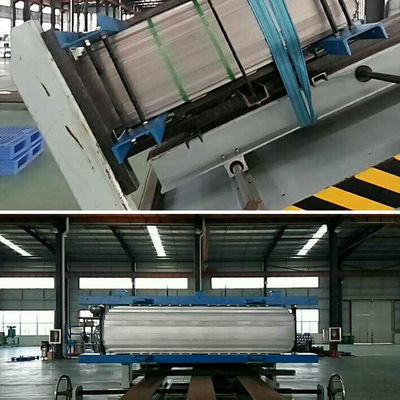

Fig 1: Transformer core stacking table FZT-5T's full view

Industrial Transformer Core Stacking Table Tilting 90 Degree 1
Fig 2: Transformer core stacking table FZT-5T's tilting stacked core

Industrial Transformer Core Stacking Table Tilting 90 Degree 2Industrial Transformer Core Stacking Table Tilting 90 Degree 3
Industrial Transformer Core Stacking Table Tilting 90 Degree 4Industrial Transformer Core Stacking Table Tilting 90 Degree 5Industrial Transformer Core Stacking Table Tilting 90 Degree 6Industrial Transformer Core Stacking Table Tilting 90 Degree 7Industrial Transformer Core Stacking Table Tilting 90 Degree 8Industrial Transformer Core Stacking Table Tilting 90 Degree 9
