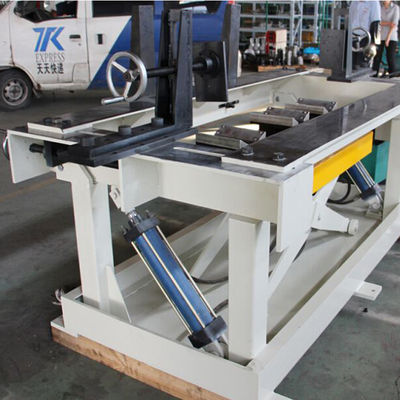

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core
Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core
video play

Large Image :  Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Usage: Assembly Armorphous Iron Core
Max. Capacity: 3000kg Max. Stoke: 300mm
Motor Power: 2.2kw Color: Optional
Tilting: Hydraulic Warranty: 12 Months
High Light:

Amorphous Transformer Stacking Table

,

Hydraulic Tilting Transformer Table

,

Transformer Lap Core Table

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core





Description of transformer core stacking table ZPT-3T



Transformer core stacking table ZPT-3T is a special equipment for making amorphous transformer core. The core stacking table can be used to assembly different kind of transformer, such as oil immersed transformers and dry type transformers. The height of the working position of the table can be adjusted to meet different assembly needs. The core stacking table can tilt the to make the stacked core be taken away easily. The transformer core stacking table features easy operation, high effective and so on.





Quick details of transformer core stacking table ZPT-3T



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum loading capacity 3000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main parameters of transformer core stacking table ZPX-3T



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-3T
1 Working height: 850mm
2 Applicable Product Size:

L:700-1600mm

W:360-700mm

H:400-900

3 Lifting Platform Loading Capacity: 3000Kg
4 Lifting Platform Stroke: 300mm
5 Lifting Speed: 40mm/s
6 Total Power: 2.2Kw
8 Stacking Table Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa


Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 0
Fig 1: Transformer core stacking table ZPT-3T's full view

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 1
Fig 2: Transformer core stacking table ZPT-3T's tilting

Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 2Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 3Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 4Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 5Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 6Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 7Adjustable Transformer Core Stacking Table Making Amorphous Transformer Lap Core 8
