Assembly Platform Transformer Core Stacking Table Hydraulic Driven

Assembly Platform Transformer Core Stacking Table Hydraulic Driven

Assembly Platform Transformer Core Stacking Table Hydraulic Driven
Assembly Platform Transformer Core Stacking Table Hydraulic Driven

Large Image :  Assembly Platform Transformer Core Stacking Table Hydraulic Driven Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE, etc
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Usage: Stacking And Tilting Core
Table Size: 2000x1600mm Table Height: 1000mm
Max. Capacity: 5000kg Driving Mode: Hydraulic
Motor: 3kw Warranty: 1 Year
High Light:

Hydraulic Driven Transformer Table

,

Assembly Platform Transformer Table

,

Platform Transformer Core Stacking Table

Hydraulic Driven Assembly Platform Transformer Core Stacking Table


Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a professional transformer core assembly equipment, which is mainly used to stack transformer iron core and other similar products. The core stacking table can tilt the stacked core for taking it away easily. The transformer core stacking table is suitable for stacking and tilting different sizes of transformer iron core. A hydraulic station is adopted to provide tilting force for the transformer core stacking table to drive the table to tilt. The speed of the tilting can be adjusted. It is very easy to operate the transformer core stacking table.


Quick details of transformer core stacking table FZT-5T


  • The table size:2000x1600mm
  • Table height:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional


Main components of transformer core stacking table FZT-5T


  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor


Main parameters of transformer core stacking table FZT-5T



Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.



No. Item FZT-5T
1 Table Size(LxW): 2000×1600mm
2 Table Height: 1000mm
3 Max. Capacity: 5000Kg
4 Max. Stacking Thickness: 900mm
5 Tilting Mode: Hydraulic
6 Tilting Speed: 90°/Min(Stepless speed regulating)
7 Distance Between Columns: Adjustable
8 Main Power: 3KW
9 Warranty: 12 months


Assembly Platform Transformer Core Stacking Table Hydraulic Driven 0

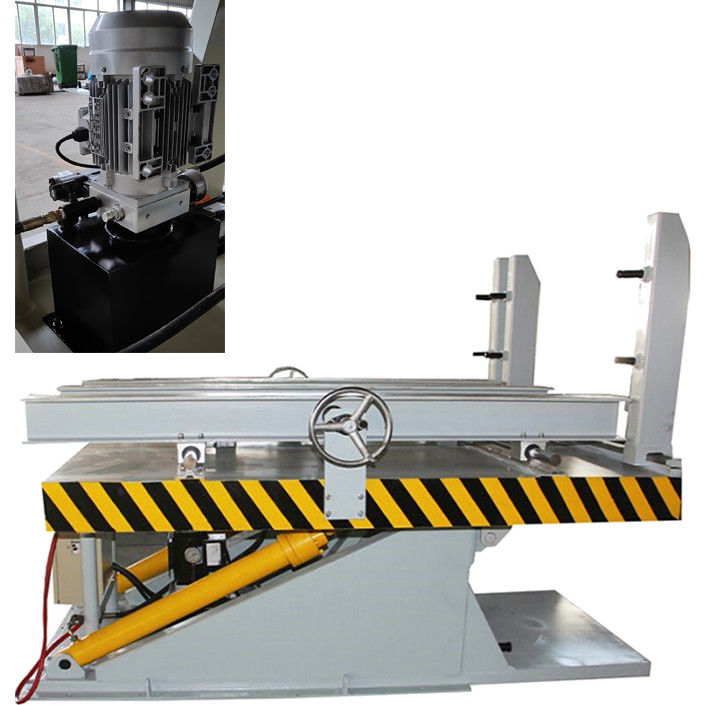

Fig 1: Transformer core stacking table FZT-5T's full view

Assembly Platform Transformer Core Stacking Table Hydraulic Driven 1
Fig 2: Transformer core stacking table FZT-5T's tilting stacked core

Assembly Platform Transformer Core Stacking Table Hydraulic Driven 2Assembly Platform Transformer Core Stacking Table Hydraulic Driven 3
Assembly Platform Transformer Core Stacking Table Hydraulic Driven 4Assembly Platform Transformer Core Stacking Table Hydraulic Driven 5Assembly Platform Transformer Core Stacking Table Hydraulic Driven 6Assembly Platform Transformer Core Stacking Table Hydraulic Driven 7Assembly Platform Transformer Core Stacking Table Hydraulic Driven 8Assembly Platform Transformer Core Stacking Table Hydraulic Driven 9
