Home ProductsTransformer Core Stacking Table

Stacking And Tilting Lap Core Stacking Table Amorphous CE

Stacking And Tilting Lap Core Stacking Table Amorphous CE

Stacking And Tilting Lap Core Stacking Table Amorphous CE
Stacking And Tilting Lap Core Stacking Table Amorphous CE
video play

Large Image :  Stacking And Tilting Lap Core Stacking Table Amorphous CE Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Assembly Armorphous Iron Core
Max. Capacity: 3000kg Max. Stoke: 300mm
Motor Power: 2.2kw Machine Color: Optional
Tilting: Hydraulic Warranty Period: 12 Months
High Light:

amorphous transformer core stacking table

,

ce core stacking table

,

hydraulic tilting core stacking table

Stacking And Tilting Lap Core Amorphous Transformer Core Stacking Table





Description of transformer core stacking table ZPT-3T



Transformer core stacking table ZPT-3T is for stacking lap core and this kind of lap core is used to make amorphous transformer. The core stacking table is operated easily. Operators just need put a coil on the lifting table, make the axis of the coil horizontal and insert each single frame iron core into the inner hole of the coil to complete folding iron cores, wrapping, mounting insulator and clamping processes, etc. The height of the table can be adjusted according to needs.





Quick details of transformer core stacking table ZPT-3T

  1. Working height 850mm
  2. Hydraulic station
  3. Linear guide
  4. Maximum loading capacity 3000kg
  5. Motor power 2.2kw
  6. Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-3T
1 Working height: 850mm
2 Applicable Product Size:

L:700-1600mm

W:360-700mm

H:400-900

3 Lifting Platform Loading Capacity: 3000Kg
4 Lifting Platform Stroke: 300mm
5 Lifting Speed: 40mm/s
6 Total Power: 2.2Kw
8 Stacking Table Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa


Stacking And Tilting Lap Core Stacking Table Amorphous CE 0

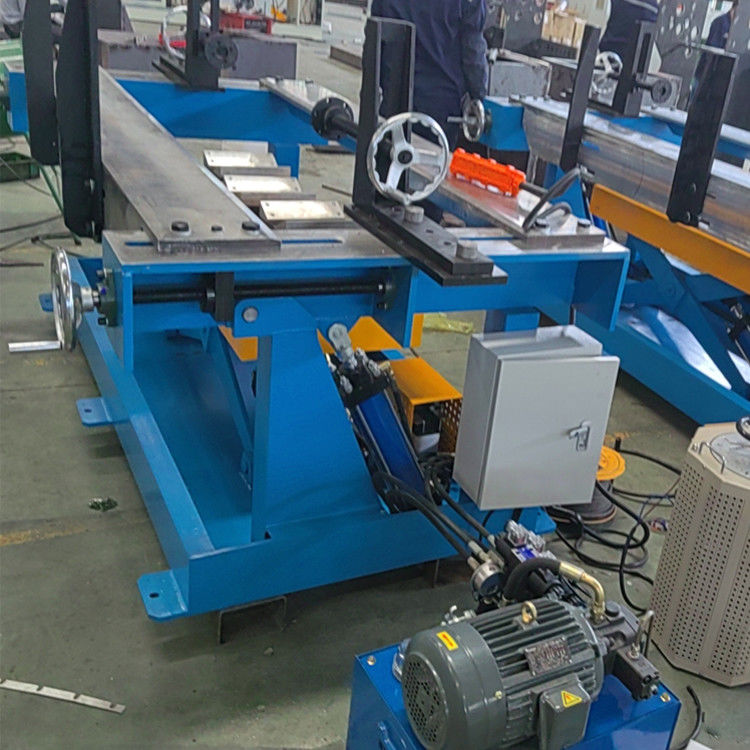

Fig 1: Transformer core stacking table ZPT-3T's full view

Stacking And Tilting Lap Core Stacking Table Amorphous CE 1
Fig 2: Transformer core stacking table ZPT-3T's tilting

Stacking And Tilting Lap Core Stacking Table Amorphous CE 2Stacking And Tilting Lap Core Stacking Table Amorphous CE 3Stacking And Tilting Lap Core Stacking Table Amorphous CE 4Stacking And Tilting Lap Core Stacking Table Amorphous CE 5Stacking And Tilting Lap Core Stacking Table Amorphous CE 6Stacking And Tilting Lap Core Stacking Table Amorphous CE 7Stacking And Tilting Lap Core Stacking Table Amorphous CE 8
