Easy Operation Transformer Core Stacking Table With Tilting Function

Easy Operation Transformer Core Stacking Table With Tilting Function

Easy Operation Transformer Core Stacking Table With Tilting Function
Easy Operation Transformer Core Stacking Table With Tilting Function

Large Image :  Easy Operation Transformer Core Stacking Table With Tilting Function Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking And Tilting Core
Table Size: 2000x1600mm Table Height: 1000mm
Max. Capacity: 5000kg Driving Mode: Hydraulic
Motor Power: 3kw Warranty Period: 1 Year
High Light:

Easy Operation Transformer Core Stacking Table

,

1000mm Height Transformer Core Stacking Table

,

Transformer Core Stacking Table With Tilting

Easy Operation Transformer Core Stacking Table With Tilting Function


Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special tilting table, which is mainly used to stack silicon steel sheet for making transformer cores. The transformer core stacking table is provided with a hydraulic station to drive the table to tilt the stacked core, which makes the stacked core be taken away from the table easily. The transformer core stacking table features easy operation and so on.


Quick details of transformer core stacking table FZT-5T

  • Platform size:2000x1600mm
  • Platform height from the floor:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional


Main components of transformer core stacking table FZT-5T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor


Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below, however, the transformer core stacking table can also be manufactured as requested.


No.ItemFZT-5T
1Table Size(LxW):2000×1600mm
2Table Height:1000mm
3Max. Capacity:5000Kg
4Max. Stacking Thickness:900mm
5Tilting Mode:Hydraulic
6Tilting Speed:90°/Min(Stepless speed regulating)
7Distance Between Columns:Adjustable
8Main Power:3KW
9Warranty:12 months


Easy Operation Transformer Core Stacking Table With Tilting Function 0

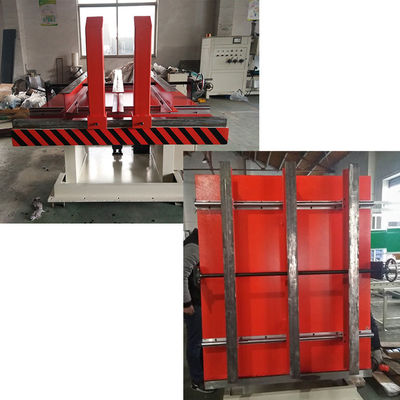

Fig 1: Transformer core stacking table FZT-5T's full view

Easy Operation Transformer Core Stacking Table With Tilting Function 1
Fig 2: Transformer core stacking table FZT-5T's tilting stacked core


Easy Operation Transformer Core Stacking Table With Tilting Function 2

Easy Operation Transformer Core Stacking Table With Tilting Function 3
Easy Operation Transformer Core Stacking Table With Tilting Function 4Easy Operation Transformer Core Stacking Table With Tilting Function 5Easy Operation Transformer Core Stacking Table With Tilting Function 6

Easy Operation Transformer Core Stacking Table With Tilting Function 7Easy Operation Transformer Core Stacking Table With Tilting Function 8
Easy Operation Transformer Core Stacking Table With Tilting Function 9Easy Operation Transformer Core Stacking Table With Tilting Function 10Easy Operation Transformer Core Stacking Table With Tilting Function 11
