Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw

Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw

Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw
Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw
video play

Large Image :  Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Transformer Core Stacking Table Function: Assembly Armorphous Iron Core
Max. Capacity: 3000kg Max. Stoke: 300mm
Motor Power: 2.2kw Machine Color: Optional
Tilting: Hydraulic Warranty Period: 12 Months
High Light:

Hydraulic Tilting Lap Core Stacking Table

,

Assembly Amorphous Iron Core Stacking Table

,

Transformer Lap Core Stacking Table 2.2kw

Amorphous Transformer Lap Core Stacking Table





Description of transformer core stacking table ZPT-3T



The transformer core stacking table, also known lap core stacking table, is a specialized equipment used in the assembly and manufacturing process of transformers and other similar products. This kind of transformer core stacking table is designed to facilitate the precise and efficient stacking of amorphous transformer lamination, also known as cores, which are crucial components for electrical power transformers. Moreover, the transformer core stacking table can tilt the stacked core, which makes the stacked core be taken away from the table easily. The transformer core stacking table features easy operation, smooth running and so on.





Quick details of transformer core stacking table ZPT-3T



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum loading capacity 3000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-3T
1 Working height: 850mm
2 Applicable Product Size:

L:700-1600mm

W:360-700mm

H:400-900

3 Lifting Platform Loading Capacity: 3000Kg
4 Lifting Platform Stroke: 300mm
5 Lifting Speed: 40mm/s
6 Total Power: 2.2Kw
8 Stacking Table Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa


Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 0

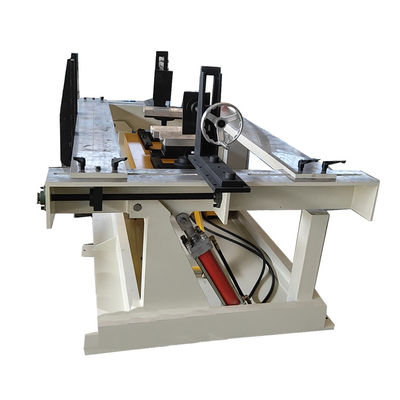

Fig 1: Transformer core stacking table ZPT-3T's full view

Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 1
Fig 2: Transformer core stacking table ZPT-3T's tilting

Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 2Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 3Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 4Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 5Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 6Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 7Amorphous Transformer Lap Core Stacking Table Hydraulic Tilting 2.2kw 8
