Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter

Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter

Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter

Large Image :  Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZJX1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 90 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Sheet Slitter Function: Slit Silicon Steel Sheet
Max. Roll Outer Diameter: Ø1200mm Roll Inner Diameter: Ø500mm
Sheet Thickness: 0.15 ~ 0.6mm Sheet Width: 500 ~ 1250mm
Machine Color: As Requested Warranty: 12 Months
Slitting Accuracy: ±0.1mm Material: Silicon Steel Sheet
High Light:

Core Slitting Machine 500mm

,

Silicon Steel Sheet Slitter

,

Electrical Steel Coils Core Slitter Machine

Core Slitting Machine Accurate Slitting Electrical Steel Coils Silicon Steel Sheet Slitter


Description of core slitting machine ZJX1250

Core slitting machine is a professional slitter to slit silicon steel to make different width strips. This kind of core slitting machine is used to slit and divide electrical steel coils into narrow strips and the strips can be cut again to make transformer cores’ legs or yokes. The core slitting machine adopts precise cutting techniques to slit the electrical steel coils into desired widths. The core slitting machine can slit different coils with various sizes and thicknesses, ensuring flexibility in the production process. The core slitting machine is usually provided with six sets of cutters, which can slit five strips at the same time. After adding more cutters, the slitter can slit more strips at once. The core slitting machine features high automation, easy operation and so on.


Quick details of core slitting machine ZJX1250

  • Decoiler expanding range Ø470 ~ 520mm
  • Sheet width 500 ~ 1250 mm
  • Sheet thickness 0.15 ~ 0.6mm
  • 6 sets of cutters
  • Feeding speed 120m/min
  • Motor power 46kw


Main components of core slitting machine ZJX1250


1. Trolley for loading and unloading material

2. Decoiler

3. Material receiver

4. Movable guide device

5. Slitting device

6. Winder

7. Hydraulic station and pneumatic system

8. Electrical control cabinet and console

Main parameters of core slitting machine ZJX1250

Typical standard specifications of core slitting machine ZJX1250 are shown below, however, the core slitting machine can also be manufactured as requested.

Decoiler expanding range:Ø470 ~ 520mm
Coil ID:Ø495 ~ 510mm
Maximum coil OD:Ø1200mm
Maximum coil weight:5000kg
Cutting width:500 ~ 1250 mm
Cutting thickness:0.15 ~ 0.6 mm
Cutting width tolerance:±0.10mm
Cutter:6 sets
Feeding speed:120 m/min
Cutting burring:≤0.02 mm
Power:46 kw


Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 0

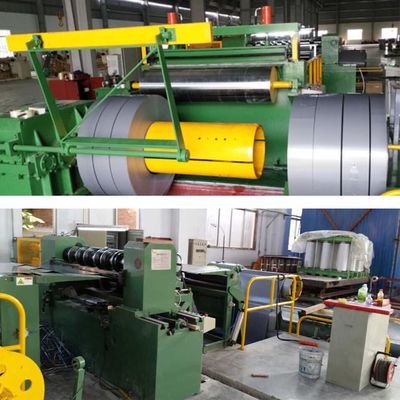

Fig 1: Core slitting machine ZJX1250's front view

Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 1
Fig 2: Core slitting machine ZJX1250's winder


Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 2

Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 3
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 4

Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 5


Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 6
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 7
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 8
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 9
Accurate Slitting Electrical Steel Coils Core Slitting Machine Silicon Steel Sheet Slitter 10
