Home ProductsTransformer Core Stacking Table

Tilting Transformer Core Stacking Table Assembly Transformer Core

Tilting Transformer Core Stacking Table Assembly Transformer Core

Tilting Transformer Core Stacking Table Assembly Transformer Core
Tilting Transformer Core Stacking Table Assembly Transformer Core

Large Image :  Tilting Transformer Core Stacking Table Assembly Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: FZT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking And Tilting Core
Platform Size: 2000x1600mm Platform Height: 1000mm
Max. Loading: 5000kg Driving Power: Hydraulic
Motor Power: 3kw Warranty: 1 Year
High Light:

Assembly Transformer Core Stacking Table

,

Tilting Transformer Core Stacking Table

,

transformer core stacking Tilting table

Transformer Core Stacking Table Assembly Transformer Core





Description of transformer core stacking table FZT-5T



Transformer core stacking table FZT-5T is a special equipment, which is used to assembly transformer core. The core stacking table can stack the core and tilt stacked cor for easy moving the stacked core from the table. The transformer core stacking table is provided with a hydraulic station to drive the table to tilt the stacked core. The speed of the tilting can be adjusted.





Quick details of transformer core stacking table FZT-5T

  • The table size:2000x1600mm
  • Table height:1000mm
  • Maximum capacity:5000kg
  • Maximum thickness of stacking: 600mm
  • Power: 3kw
  • Color: optional



Main Components of transformer core stacking table FZT-5T

  • Main frame
  • Hydraulic station
  • Linear guide
  • Control panel
  • Cylinder
  • Motor



Main Parameters of transformer core stacking table FZT-5T



Typical standard specifications of transformer core stacking table FZT-5T are shown below and the stacking table can also be manufactured as requested.



Table Size(LxW): 2000×1600mm
Table Height: 1000mm
Max. Capacity: 5000Kg
Max. Stacking Thickness: 900mm
Tilting Mode: Hydraulic
Tilting Speed: 90°/Min(Stepless speed regulating)
Distance Between Columns: Adjustable
Main Power: 3KW
Warranty: 12 months


Tilting Transformer Core Stacking Table Assembly Transformer Core 0
Fig 1: Transformer core stacking table FZT-5T's full view

Tilting Transformer Core Stacking Table Assembly Transformer Core 1

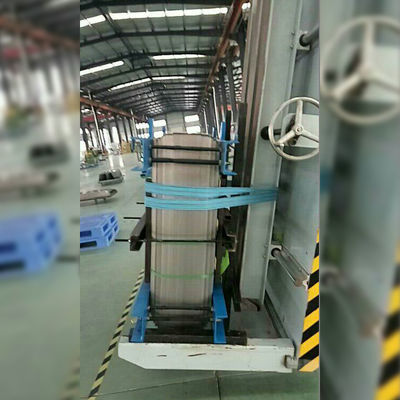

Fig 2: Transformer core stacking table FZT-5T's tilting stacked core

Tilting Transformer Core Stacking Table Assembly Transformer Core 2

Tilting Transformer Core Stacking Table Assembly Transformer Core 3
Tilting Transformer Core Stacking Table Assembly Transformer Core 4Tilting Transformer Core Stacking Table Assembly Transformer Core 5Tilting Transformer Core Stacking Table Assembly Transformer Core 6
Tilting Transformer Core Stacking Table Assembly Transformer Core 7Tilting Transformer Core Stacking Table Assembly Transformer Core 8
Tilting Transformer Core Stacking Table Assembly Transformer Core 9Tilting Transformer Core Stacking Table Assembly Transformer Core 10Tilting Transformer Core Stacking Table Assembly Transformer Core 11
