Amorphous Transformer Lap Core Adjustable Stacking Table

Amorphous Transformer Lap Core Adjustable Stacking Table

Amorphous Transformer Lap Core Adjustable Stacking Table
Amorphous Transformer Lap Core Adjustable Stacking Table
video play

Large Image :  Amorphous Transformer Lap Core Adjustable Stacking Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Certification: CE
Model Number: ZPT-3T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Usage: Stacking Transformer Iron Core
Max. Capacity: 3000kg Max. Stoke: 300mm
Motor Power: 2.2kw Color: Optional
Tilting: Hydraulic Warranty Period: 12 Months
High Light:

Amorphous transformer core stacking table

,

transformer Lap core stacking table

,

Adjustable transformer core stacking table

Amorphous Transformer Lap Core Adjustable Stacking Table





Description of transformer core stacking table ZPT-3T



Transformer iron core stacking table ZPX-3T is a professional equipment, which is mainly used to assembly amorphous alloy iron core transformer. With one hand held controller, the transformer core stacking table can be operated easily, The height of the transformer core stacking table’s working platform can be easily adjusted to meet different assembly needs. The core stacking table features easy operation, smooth running and so on.





Quick details of transformer core stacking table ZPT-3T



  • Working height 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 3000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-3T



Typical standard specifications of transformer core stacking table ZPT-3T are shown below and the core stacking table can also be manufactured as requested.

Working height 850mm
Applicable Product Size

L:700-1600mm

W:360-700mm

H:400-900

Lifting Platform Capacity (rated) 3000Kg
Lifting Platform Stroke 300mm
Lifting Speed 40mm/s
Total Power 2.2Kw
Total Weight 1500Kg
Applicable Transformer capacity 30KVA-2000KVA
Rotating Angle 90°
Hydraulic Working Pressure 21MPa


Amorphous Transformer Lap Core Adjustable Stacking Table 0

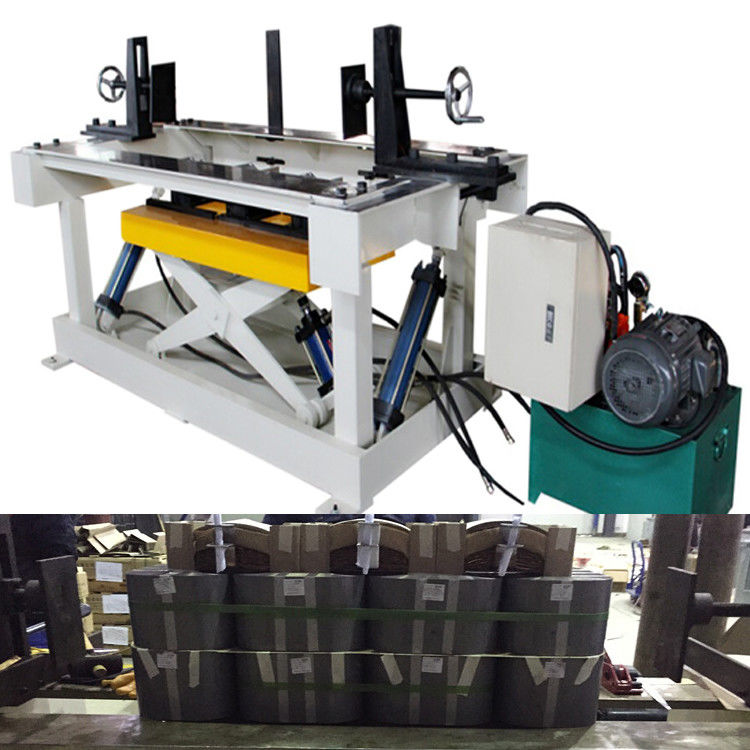

Fig 1: Transformer core stacking table ZPT-3T's full view

Amorphous Transformer Lap Core Adjustable Stacking Table 1
Fig 2: Transformer core stacking table ZPT-3T's tilting

Amorphous Transformer Lap Core Adjustable Stacking Table 2Amorphous Transformer Lap Core Adjustable Stacking Table 3Amorphous Transformer Lap Core Adjustable Stacking Table 4Amorphous Transformer Lap Core Adjustable Stacking Table 5Amorphous Transformer Lap Core Adjustable Stacking Table 6Amorphous Transformer Lap Core Adjustable Stacking Table 7Amorphous Transformer Lap Core Adjustable Stacking Table 8
