Product Details:
Payment & Shipping Terms:
|
| Name: | Transformer Core Stacking Table | Function: | Stacking Transformer Iron Core |
|---|---|---|---|
| Max. Capacity: | 3000kg | Max. Stoke: | 300mm |
| Power: | 2.2kw | Machine Color: | Optional |
| Driving: | Hydraulic | Warranty Period: | 12 Months |
| High Light: | Lap Core Transformer Core Stacking Table,Amorphous Transformer Core Stacking Table,Laminating Platform Transformer Core Stacking Table |
||
Lap Core Laminating Platform Amorphous Transformer Core Stacking Table
Description of transformer core stacking table ZPT-3T
Transformer core stacking table ZPX-3T is a professional stacking equipment to assembly amorphous alloy transformer iron cores. With a hydraulic station controlled through a hand held controller, the transformer core stacking table can be operated easily. The transfomer core stacking table tilt the stacked core for easy taking the stacked core from the table. The core stacking table features easy operation, smooth running and so on.
Quick details of transformer core stacking table ZPT-3T
Main Parameters of transformer core stacking table ZPT-3T
Typical standard specifications of transformer core stacking table ZPT-3T are shown below and the core stacking table can also be manufactured as requested.
| Working height | 850mm |
| Applicable Product Size |
L:700-1600mm W:360-700mm H:400-900 |
| Lifting Platform Capacity (rated) | 3000Kg |
| Lifting Platform Stroke | 300mm |
| Lifting Speed | 40mm/s |
| Total Power | 2.2Kw |
| Total Weight | 1500Kg |
| Applicable Transformer capacity | 30KVA-2000KVA |
| Rotating Angle | 90° |
| Hydraulic Working Pressure | 21MPa |

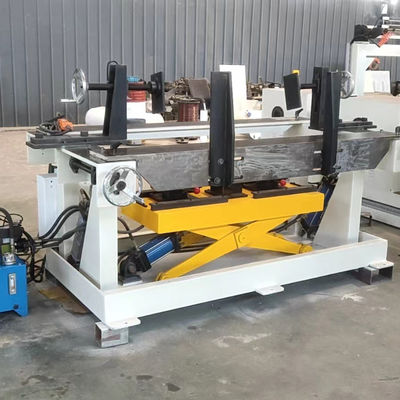

Fig 1: Transformer core stacking table ZPT-3T's full view
Fig 2: Transformer core stacking table ZPT-3T's tilting
