Description of transformer core stacking table ZPT-3T

Transformer core stacking table ZPT-3T is a special equipment, whick is mainly used to assemble amorphous alloy transformer iron cores. With b hand held controller, the transformer core stacking table can be operated easily. With a hydraulic station, the transformer core stacking table is provided with a hydraulic station for tilting the stacked core, which make the stacked core be taken away easily. The core stacking table features easy operation, smooth running and so on.

Quick details of transformer core stacking table ZPT-3T

• Working height 850mm
• Hydraulic station
• Linear guide
• Maximum capacity 3000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-3T

Typical standard specifications of transformer core stacking table ZPT-3T are shown below and the core stacking table can also be manufactured as requested.

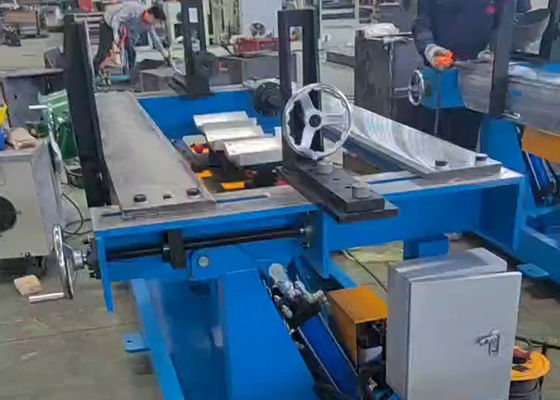

Fig 1: Transformer core stacking table ZPT-3T's full view


Fig 2: Transformer core stacking table ZPT-3T's tilting
