Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special stacking equipment to stack silicon steel sheet to make transformer core. With a hydraulic station, after finishing stacking core, the transformer core stacking table can tilt the stacked core for being taken away from the stacking table easily. With a hand held controller, the transformer core stacking table can be operated easily. Moreover, the speed of the tilting can also be adjusted. The transformer core stacking table features easy operation and so on.

Quick details of transformer core stacking table FZT-5T

• The table size:2000x1600mm
• Table height:1000mm
• Maximum capacity:5000kg
• Maximum thickness of stacking: 600mm
• Power: 3kw
• Color: optional

Main Components of transformer core stacking table FZT-5T

• Main frame
• Hydraulic station
• Linear guide
• Control panel
• Cylinder
• Motor

Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below and the stacking table can also be manufactured as requested.

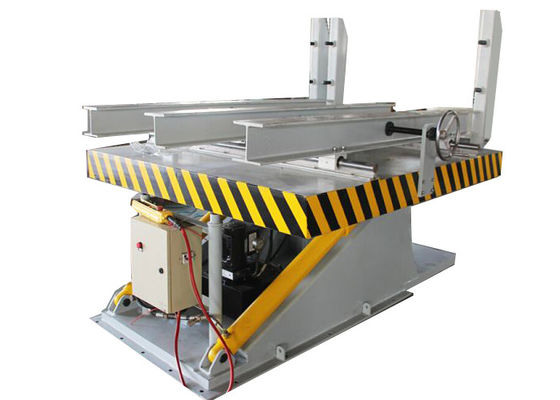

Fig 1: Transformer core stacking table FZT-5T's full view


Fig 2: Transformer core stacking table FZT-5T's tilting stacked core
