Hydraulic Driven Amorphous Transformer Lap Core Stacking Table With 300mm Lift Stoke

Amorphous Transformer Lap Core Stacking Table

Description of transformer core stacking table ZPT-3T

Transformer core stacking table ZPT-3T is a professional stacking equipment for assembling amorphous alloy transformer iron cores. The transformer core stacking table is provided with hydraulic station for providing power to lift core and tilt stacked core. With a hand held controller, the transformer core stacking table can be operated easily.

Quick details of transformer core stacking table ZPT-3T

1. Working height  850mm

2. Hydraulic station

3. Linear guide

4. Maximum capacity 3000kg

5. Motor power 2.2kw

6. Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-3T

Typical standard specifications of transformer core stacking table ZPT-3T are shown below and the core stacking table can also be manufactured as requested.

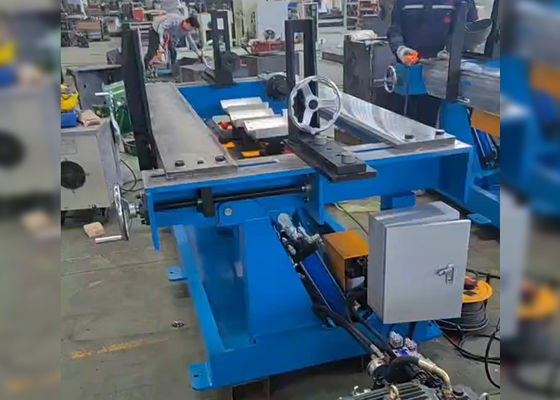

Fig 1: Transformer core stacking table ZPT-3T's full view


Fig 2: Transformer core stacking table ZPT-3T's tilting
