Transformer Core Stacking Table with 8000kg Max Capacity Hydraulic Station and 850mm Working Height

Lap Core Stacking Table Transformer Core Assembly Table

Description of transformer core stacking table ZPT-8T

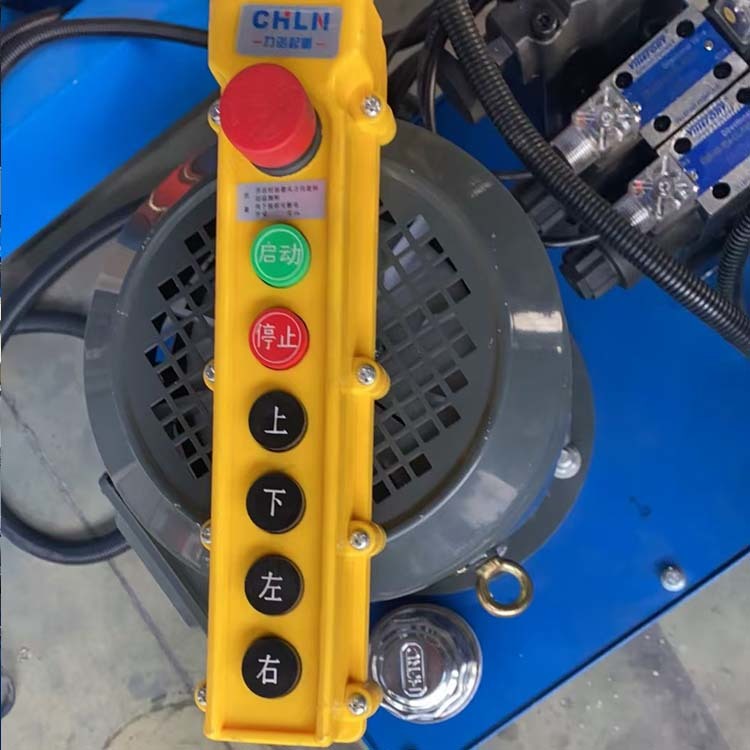

Transformer core stacking table ZPT-8T is a professional transformer core assembly equipment, which is mainly used to stack amorphous alloy transformer iron cores. The transformer core stacking table is provided with a hydraulic station, which provide a power for tilting the stacked core. With a hand held controller, the transformer core stacking table can be operated easily. The core stacking table features slow starting, smooth running, strong turning force and so on.

Quick details of transformer core stacking table ZPT-8T

1. Working height  850mm

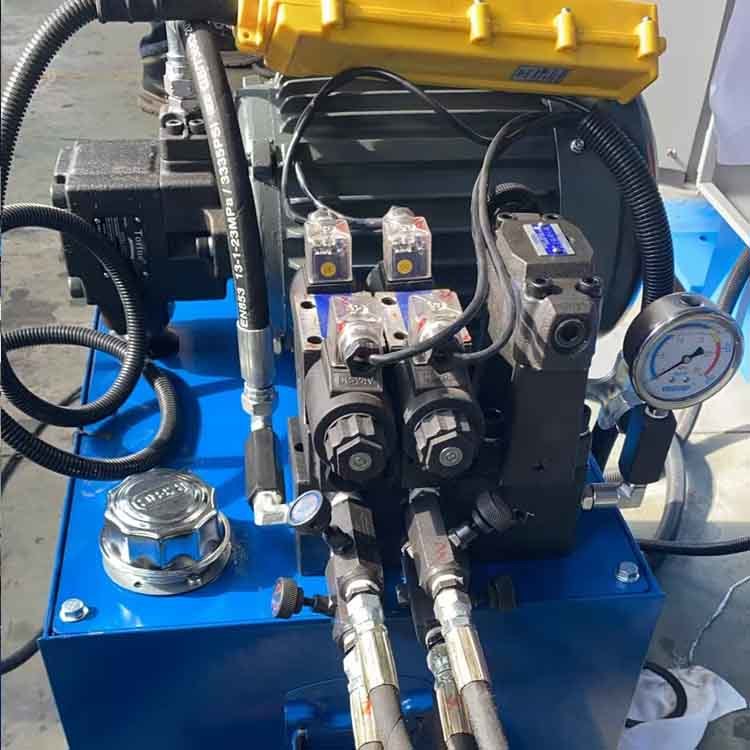

2. Hydraulic station

3. Linear guide

4. Maximum capacity 8000kg

5. Motor power 4kw

6. Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-8T

Typical standard specifications of transformer core stacking table ZPT-8T are shown below and the core stacking table can also be manufactured as requested.

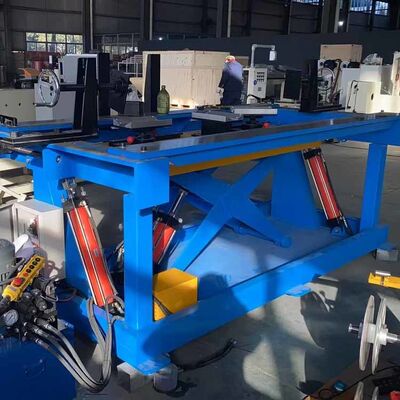

Fig 1: Transformer core stacking table ZPT-8T's full view


Fig 2: Transformer core stacking table ZPT​-8T's tilting
