Description of transformer core stacking table ZPT-3T

Transformer core stacking table ZPT-3T is a special stacking equipment, which is mainly used to assemble amorphous alloy transformer iron cores. With a hydraulic station, the transformer core stacking table can lift coils and tilt stacked cores. The transformer core stacking table is provided with a hand held controller, which make the stacking table be operated easily.

Quick details of transformer core stacking table ZPT-3T

1. Working height  850mm

2. Hydraulic station

3. Linear guide

4. Maximum capacity 3000kg

5. Motor power 2.2kw

6. Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-3T

Typical standard specifications of transformer core stacking table ZPT-3T are shown below and the core stacking table can also be manufactured as requested.

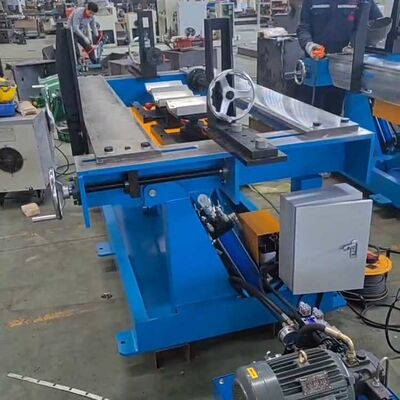

Fig 1: Transformer core stacking table ZPT-3T's full view


Fig 2: Transformer core stacking table ZPT-3T's tilting
