Description of transformer core stacking table ZPT-5T

Transformer core stacking table,also called lap core adjustable stacking table, ZPX-5T is mainly used to assemble amorphous alloy transformers’ iron core. The transformer core stacking table can be used to stack the iron core, after stacking the core, the transformer core stacking table can also tilt the stacked core for easy taking the stacked core away from the table. Moreover, the height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs.

Quick details of transformer core stacking table ZPT-5T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table

Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however, the stacking table can also be manufactured as requested.

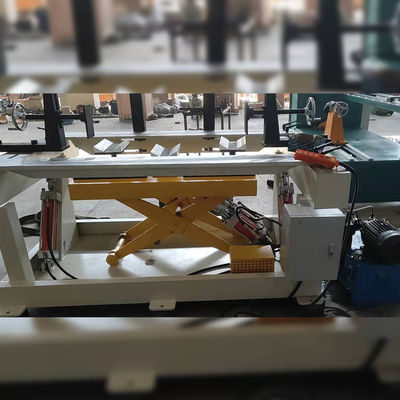

Fig 1: Transformer core stacking table ZPT-5T's full view


Fig 2: Transformer core stacking table ZPT​-5T's tilting
