Description of transformer core stacking table ZPT-5T



Transformer core stacking table is a special equipment, which is mainly used to assemble amorphous transformer’s iron lap cores. The transformer core stacking table can be used to stack the iron lap core and it can also be used to tilt the stacked core for taking the core from the table eaily. This lap core stacking table is very easy to be operated, operator only need put a coil on the lifting platform of the transformer core stacking table, making the axis of the coil horizontal, inserting every single frame iron core into the inner hole of the coil, wrapping, mounting insulator, and clamping processes, etc to complete folding iron cores. The height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs.





Quick details of transformer core stacking table ZPT-5T

  • Platform height from floor 850mm
  • Hydraulic station
  • Linear guide
  • Maximum capacity 5000kg
  • Motor power 2.2kw
  • Maximum hydraulic pressure  21MPa



Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-5T
1 Working height 850mm
2 Applicable Product Size

L:1500 ~ 2200mm

W:360 ~ 1000mm

H:400 ~ 900

3 Lifting Platform Capacity (rated) 5000Kg
4 Lifting Platform Stroke 500mm
5 Lifting Speed 40mm/s
6 Total Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa



Lap Core Stacking Transformer Core Stacking Table Amorphous 0

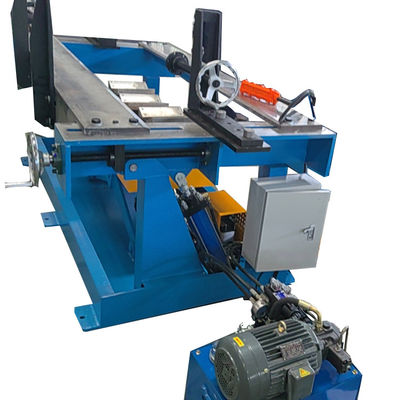

Fig 1: Transformer core stacking table ZPT-5T's full view
