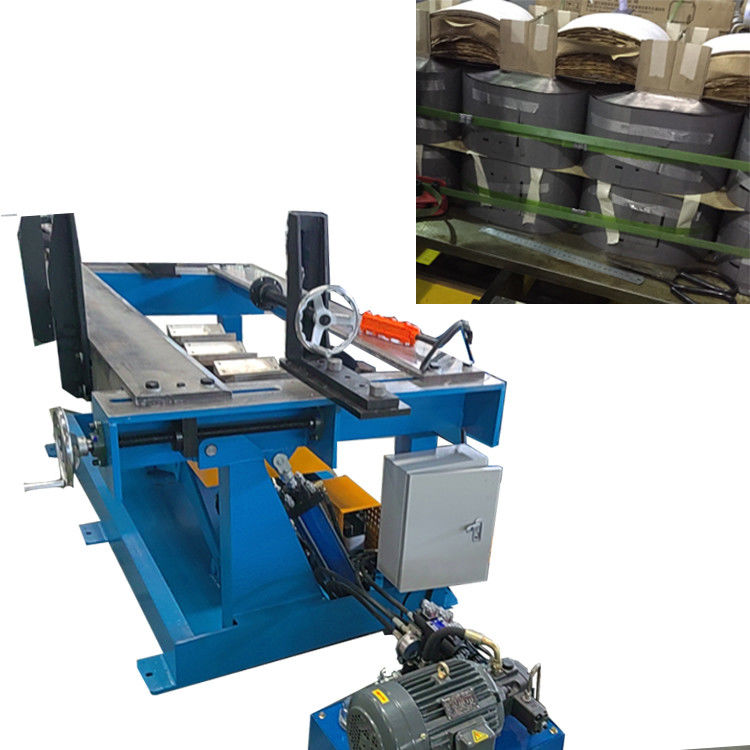

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg
Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg
video play

Large Image :  Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Table Height: 850mm Max Capacity: 5000kg
Max Platform Stroke: 500mm Warranty Period: 12 Months
Machine Color: As Requested Motor Power: 2.2kw
High Light:

2.2kw Transformer Core Machine

,

Amorphous Core Stacking Table

,

Transformer Core Stacking Table 5000kg

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg





Description of transformer core stacking table ZPT-5T



Transformer core stacking table is mainly used to stack and assembly cores of amorphous transformers. The transformer core stacking table can be used to not only stack the iron core, but also tilt the stacked core. This kind of transformer core stacking table is also called lap core stacking table and is very easy to be operated, operator only need put a coil on the lifting platform of the transformer core stacking table, making the axis of the coil horizontal, inserting every single frame iron core into the inner hole of the coil, wrapping, mounting insulator, and clamping processes, etc to complete folding iron cores. The transformer core stacking table's height can be easily adjusted to meet different assembly needs. The transformer core stacking table features easy operation and so on.





Quick details of transformer core stacking table ZPT-5T

  • Working height 850mm
  • Hydraulic station 1 piece
  • Linear guide
  • Maximum capacity 5000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa





Main Parameters of transformer core stacking table



Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-5T
1 Working height 850mm
2 Applicable Product Size

L:1500 ~ 2200mm

W:360 ~ 1000mm

H:400 ~ 900

3 Lifting Platform Capacity (rated) 5000Kg
4 Lifting Platform Stroke 500mm
5 Lifting Speed 40mm/s
6 Total Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa



Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 0
Fig 1: Transformer core stacking table ZPT-5T's full view

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 1
Fig 2: Transformer core stacking table ZPT​-5T's tilting
Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 2Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 3
Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 4

Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 5Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 6Amorphous Transformer Core Stacking Table Maximum Capacity 5000kg 7
