Adjustable Lap Core Stacking Table Making Amorphous Transformer Core

Adjustable Lap Core Stacking Table Making Amorphous Transformer Core

Adjustable Lap Core Stacking Table Making Amorphous Transformer Core
Adjustable Lap Core Stacking Table Making Amorphous Transformer Core
video play

Large Image :  Adjustable Lap Core Stacking Table Making Amorphous Transformer Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Product Name: Transformer Core Stacking Table Function: Stacking Silicon Steel Sheet
Table Height: 850mm Max Capacity: 5000kg
Max Platform Stroke: 500mm Warranty: 12 Months
Color: As Requested Motor Power: 2.2kw
High Light:

Adjustable Core Stacking Table

,

Adjustable Stacking Table

,

Amorphous Transformer Core Stacking Table

Adjustable Lap Core Stacking Table Making Amorphous Transformer Core





Description of transformer core stacking table ZPT-5T



Transformer core stacking table ZPT-5T is a professional equipment, which is mainly used to assemble cores of amorphous transformers. The transformer core stacking table can be used to stack the core, after the core is stacked, the transformer core stacking table can also be used to tilt the stacked core, which can make the stacked core be taken away from the table easily. With a hand held controller, the transformer core stacking table can be operated easily.





Quick details of transformer core stacking table ZPT-5T

  • Working height 850mm
  • Hydraulic station 1 piece
  • Linear guide
  • Maximum capacity 5000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-5T



Typical standard specifications of transformer core stacking table ZPT-5T are shown below, however, the stacking table can also be manufactured as requested.

No. Item ZPT-5T
1 Working height 850mm
2 Applicable Product Size

L:1500 ~ 2200mm

W:360 ~ 1000mm

H:400 ~ 900

3 Lifting Platform Capacity (rated) 5000Kg
4 Lifting Platform Stroke 500mm
5 Lifting Speed 40mm/s
6 Total Power 2.2Kw
8 Total Weight 1500Kg
8 Applicable Transformer capacity 30KVA-2000KVA
9 Rotating Angle 90°
10 Hydraulic Working Pressure 21MPa


Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 0

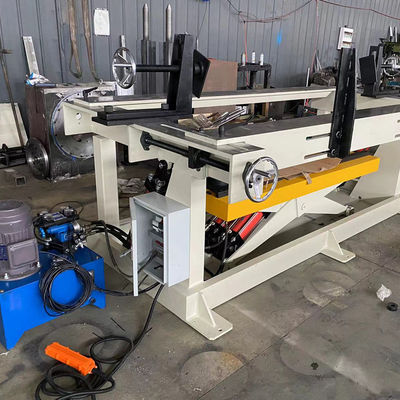

Fig 1: Transformer core stacking table ZPT-5T's full view

Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 1
Fig 2: Transformer core stacking table ZPT​-5T's tilting
Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 2
Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 3Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 4
Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 5
Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 6Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 7

Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 8Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 9Adjustable Lap Core Stacking Table Making Amorphous Transformer Core 10
