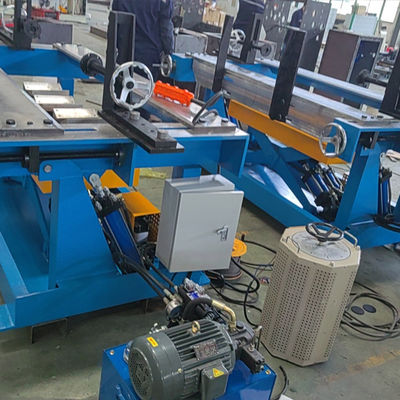

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table
Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table
video play

Large Image :  Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table Get Best Price

Product Details:
Place of Origin: China
Brand Name: STT
Model Number: ZPT-5T
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: seaworthy packing
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per year
Detailed Product Description
Name: Lap Core Stacking Table Usage: Stacking Silicon Steel Sheet
Table Height: 850mm Max Capacity: 5000kg
Max Platform Stroke: 500mm Warranty: 12 Months
Color: As Requested Motor Power: 2.2kw
High Light:

Adjustable Transformer Core Stacking Table

,

Adjustable Lap Core Stacking Table

,

Amorphous Transformer Core Stacking Table

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table





Description of transformer core stacking table ZPT-5T



Transformer core stacking table ZPT-5T is a special equipment to stack lap cores, this kind of core can be used in amorphous transformer and other similar products. The transformer core stacking table is driven hydraulically for lifting the stacked core and tilting the stacked core. The transformer core stacking table is controlled through a hand held controller. It is very easy to operate the stacking table.





Quick details of transformer core stacking table ZPT-5T

  • Working height 850mm
  • Hydraulic station 1 piece
  • Linear guide
  • Maximum capacity 5000kg
  • Motor power 2.2kw
  • Hydraulic pressure 21MPa



Main Parameters of transformer core stacking table ZPT-5T



Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.



Working Height: 850mm
Applicable Product Size:

L:1500 ~ 2200mm

W:360 ~ 1000mm

H:400 ~ 900

Lifting Platform Capacity (rated): 5000Kg
Lifting Platform Stroke: 500mm
Lifting Speed: 40mm/s
Total Power: 2.2Kw
Total Weight 1500Kg
Applicable Transformer capacity: 30KVA-2000KVA
Rotating Angle: 90°
Hydraulic Working Pressure: 21MPa



Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 0
Fig 1: Transformer core stacking table ZPT-5T's full view

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 1
Fig 2: Transformer core stacking table ZPT​-5T's tilting
Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 2
Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 3Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 4
Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 5
Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 6Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 7

Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 8Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 9Adjustable Lap Core Stacking Platform Amorphous Transformer Core Stacking Table 10
