Description of transformer core stacking table ZPT-5T

Transformer core stacking table is a professional equipment, which is mainly used to stack amorphous transformer lap cores. With a hydraulic station, the transformer core stacking table lift and flip up the stacked lap core. The transformer core stacking table is provided with a hand held controller to control the transformer core stacking table. The transformer core stacking table features easy operation and so on.

Quick details of transformer core stacking table ZPT-5T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-5T

Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.

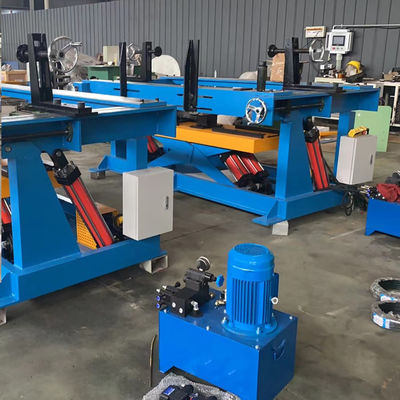

Fig 1: Transformer core stacking table ZPT-5T's full view


Fig 2: Transformer core stacking table ZPT​-5T's tilting
