Description of transformer core stacking table ZPT-5T

Transformer core stacking table ZPT-5T is a professional stacking lap core equipment. The stacked core can be used in amorphous transformer and other similar products. With hydraulic station and hydraulic cylinder, the transformer core stacking table can lift and flip up the stacked core with maximum height 5000kg. The transformer core stacking table is provided with a hand held controller to control the core stacking table. The transformer core stacking table can be operated easily.

Quick details of transformer core stacking table ZPT-5T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 3kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-5T

Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.

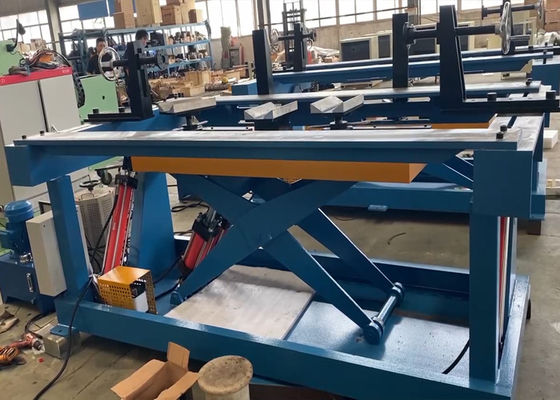

Fig 1: Transformer core stacking table ZPT-5T's full view


Fig 2: Transformer core stacking table ZPT​-5T's tilting
