Description of transformer core stacking table ZPT-8T

Transformer core stacking table ZPT-8T is a professional equipment for stacking silicon steel sheet to make amorphous transformer cores. The core stacking table is provided with a hydraulic station for lifting and tilting the stacked core. The transformer core stacking table is also provided with a hand held controller, which make the transformer core stacking table be operated easily.

Quick details of transformer core stacking table ZPT-8T

• Working height 850mm
• Hydraulic station 1 piece
• Linear guide
• Maximum capacity 5000kg
• Motor power 3kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-8T

Typical standard specifications of transformer core stacking table ZPT-8T are shown below and the stacking table can also be manufactured as requested.

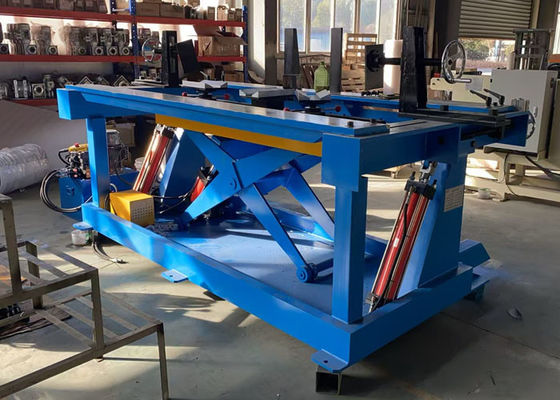

Fig 1: Transformer core stacking table ZPT-8T's full view


Fig 2: Transformer core stacking table ZPT​-8T's tilting
